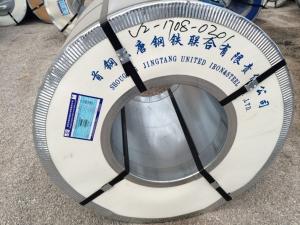

ASTM A653 JIS 3302 EN10143 Hot Dip Galvanized Steel Coil with 508mm / 610mm Coil ID
Quick Detail:
| Standard: | AISI,ASTM,BS,GB,JIS | Steel Grade: | SGCC,DC51D,DX51D, DX52D, SPCC,SGCD,Q235, SGHC, G350,G550, G450,etc. | Thickness: | 0.13mm-4.0mm |
| Place of Origin: | China (Mainland) | Technique: | Cold Rolled | Surface Treatment: | Galvanized |
| Length: | coil | Zinc: | 40g-275g |
Description:
Specification: SGCC, SGCH, SGCD, SGHC, (CS, SS, DDS)
Features:
1) Standards: JIS G3302 1998 or ASTM A653M / A924M 1998
2) With excellent weather resistance
3) Suitable for partitions, vending machinery, decks, scaffolding, purlin, gurdrail, suspension bar for ceiling and so on
4) Specification: SPCC, SGCC, SGCH, SGCD, SGHC, (CS, SS, DDS)
5) Thickness: 0.14mm-50mm
6) Width: 20mm - 1250mm
7) Zinc coating: Z08, Z12, Z18, Z20, Z22, Z25, Z27
8) Surface finish: Regular spangle, minimized spangle, zero spangle
9) Surface treatment: Chromating treatment, anti-finger print
10) Inner diameter: 508mm / 610mm
11) Outer diameter: 2, 000mm max .
Product Details:
Steel Grade : SPCC SGCC DX51D Q235 Q195
Type : Steel Coil
Surface Treatment : Galvanized
Applications:
Roofing and walling, curved profiles, corrugated sheets, foamed sandwich panels for roofing and walling, roof tills, rainwater gutter, metal doors, garage doors, wall panels for partitions, ceiling panels, suspended frames, interior metal doors or windows, profiles for exterior cabinets of white appliances, office furniture, home appliances, etc.
Specifications:
| Product | PPGI |
| Material | DX51D |
| Width | 1000mm-1250mm |
| Length | As required |
| Thickness | 0.14mm-2.0mm |
| Zinc coating | 40-275g/m2 |
| Painting Thickness | Top side: 20+/-5microns |
| Bottom side: 7+/-2microns |
| Surface treatment | Big, small, zero, regular spangle Chromate treatment /chromate-free treatment /untreated unoile/oiled |
| Color | All RAL color |
| Coil ID | 508mm/610mm |
| Coil weight | 3-8 Metric tons |
| Usage | Roof structure, surface sheet of balcony,frame of window,door, etc |
| Port | Tianjin port |
| Packaging Details | Export packing or as your demand |
| Payment Terms | L/C,T/T |
| STEEL GRADE | CHEMICAL COMPOSITION % | MECHANIC PROPERTY | C.B OF COATING | COATING |
| | C | Si | Mn | S | P | T.S | Y.S | E.L |
| | x103 | x103 | x102 | x103 | x103 | Mpa | Mpa | % | d=0 180° | G/M² |
| JIS G3302 SGCC | 12 | 30 | 41 | 31 | 21 | 480 | 300 | 13 | OK | Z60-150 |
| JIS G3302 SGCH | 12 | 10 | 21 | 18 | 8 | 680 | 650 | | OK | Z60-150 |
| ASTM A653 CS.B | 20 | 30 | 60 | 35 | 30 | 386 | 205~380 | 20 | OK | Z80-275 |
| DX51D+Z | 29 | 21 | 18 | 1.8 | 11 | 355 | 245 | 38 | OK | Z80-275 |
| G550 | 20 | 6 | 73 | 5 | 17 | 715 | 654 | 8 | OK | Z80-275 |
| | | | | | | | | | | | | |
Competitive Advantage:
· ISO System
· SGS and BV Audited company .
· Industry experience over 20 years.
· Management Systems-Internal Software
· Finished Product Inventory-More Than 500 Tons.
· Raw Material inventory -Over 800 Mertic Tons.
· Shipment of goods -More than 30 countries worldwide.
· We have the most convenient transport and prompt delivery.
· We offer competitive price with best service .
· We have high technical production line with top quality products.
· We have win high reputation based on best quality products.
